Description :

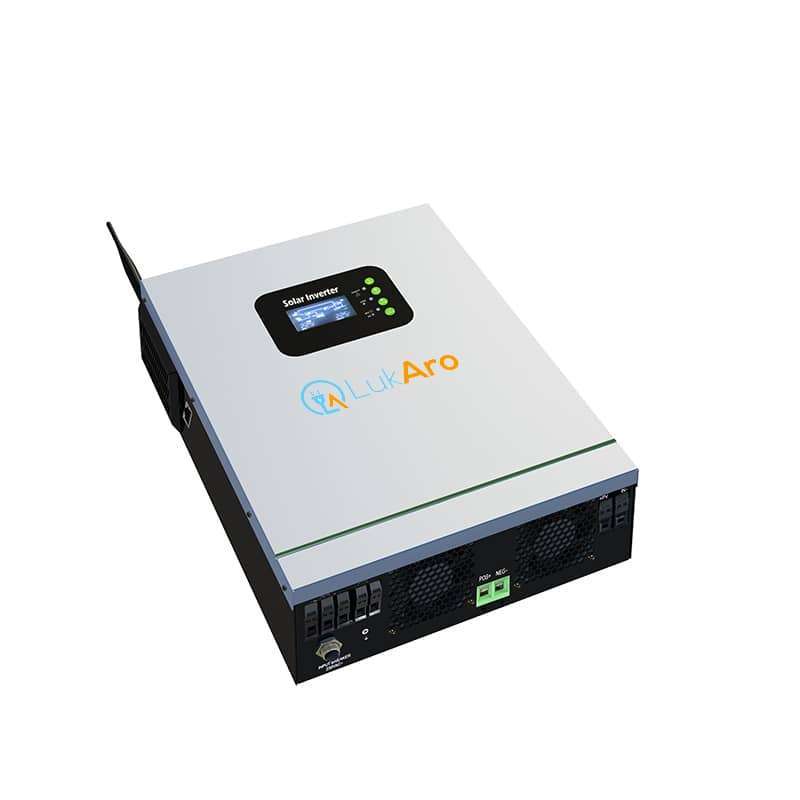

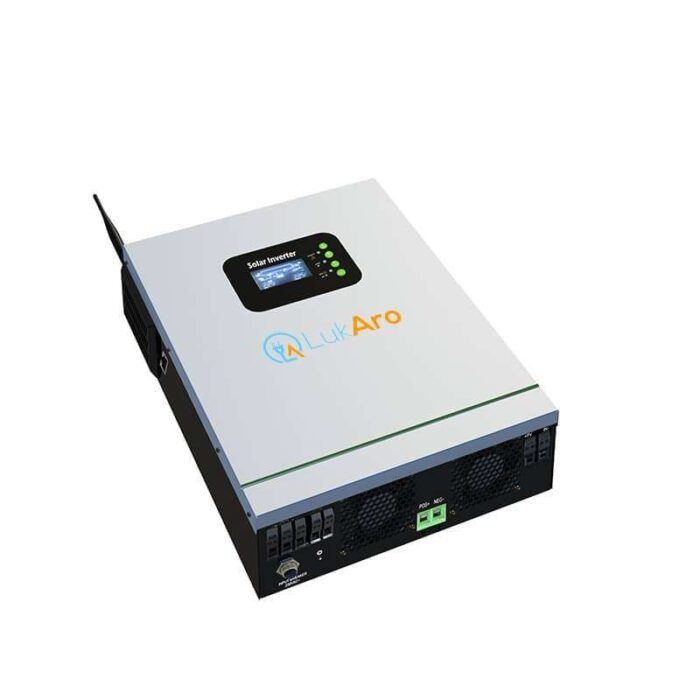

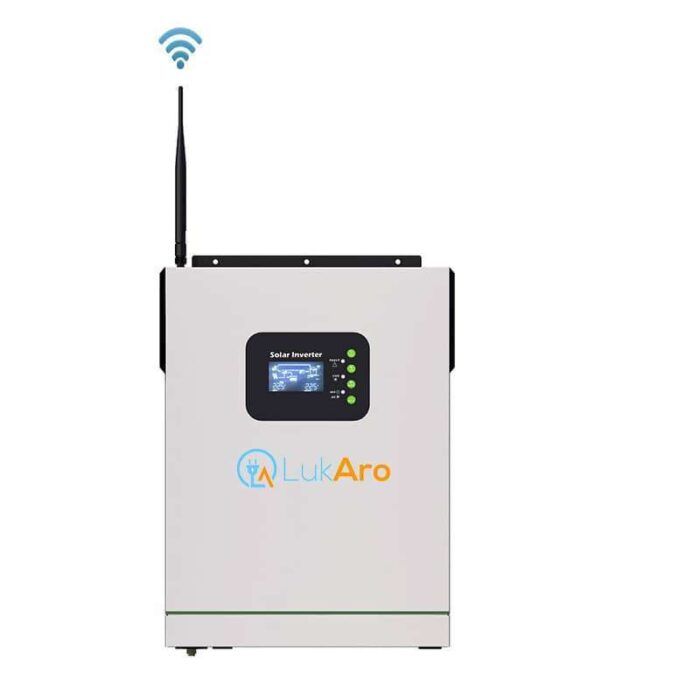

Our off grid solar inverter is a multi-function inverter/charger, combining functions of inverter, solar charger & battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user-configurable and easily accessible button operations such as battery charging current, AC/solar charger priority & acceptable input voltage based on different applications.

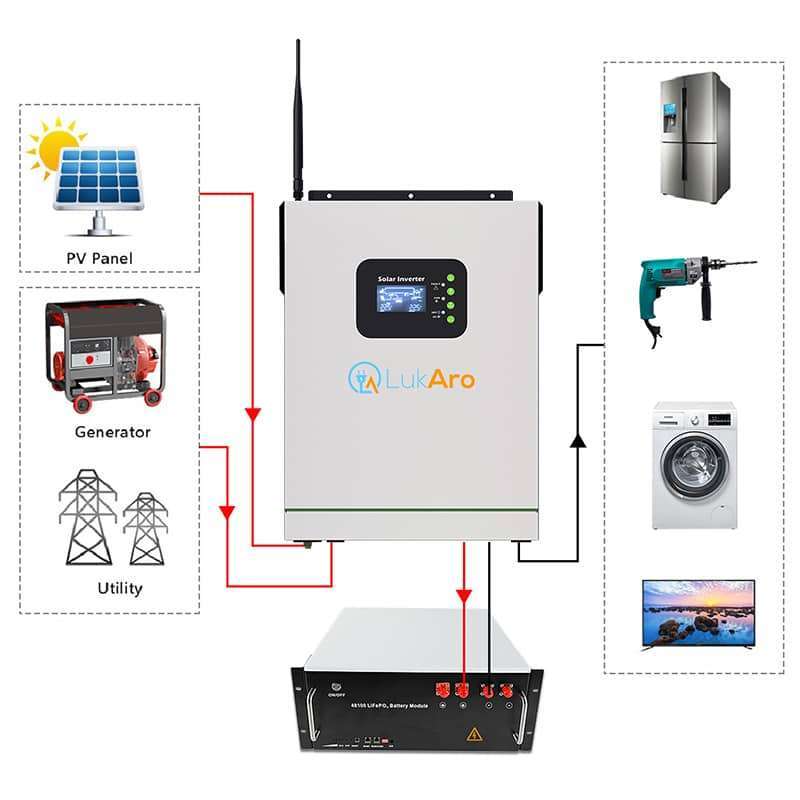

Off grid inverters cannot feed power back to the grid as they are off-grid. However, they can use grid power to charge the battery bank. Off grid inverters are more used in complete off-grid situations with separate outlet circuits. If you require feed power back to the grid at the same time you will require a hybrid inverter.

Model voltage supply:

2.4kW model is 12 volts

3.2kW model is 24 volts

5.5kW model is 48 volts

Mounting Off-grid solar Inverter unit:

• Consider the following points before selecting where to install
• Do not mount the inverter on flammable construction materials.
• Mount on a solid surface
• Install this inverter at eye level in order to allow the LCD display to be read at all times.
• For proper air circulation to dissipate heat, allow a clearance of approx. 20 cm to the side and approx. 50 cm above and below the unit.
• The ambient temperature should be between 0°C and 55°C to ensure optimal operation.
• The recommended installation position is to adhere to the wall vertically.
• Be sure to keep other objects and surfaces as shown in the diagram to guarantee sufficient heat
  dissipation and to have enough space for removing wires.

INSTALLATION:

Before installation, please inspect the unit. Be sure that nothing inside the package is damaged. You should have received the following items inside of package:

• The unit x 1
• User manual x 1
• DC Fuse x 1
• Ring terminal x 1
• Strain relief plate x 1
• PV wire cover x 1
• Screws x 4

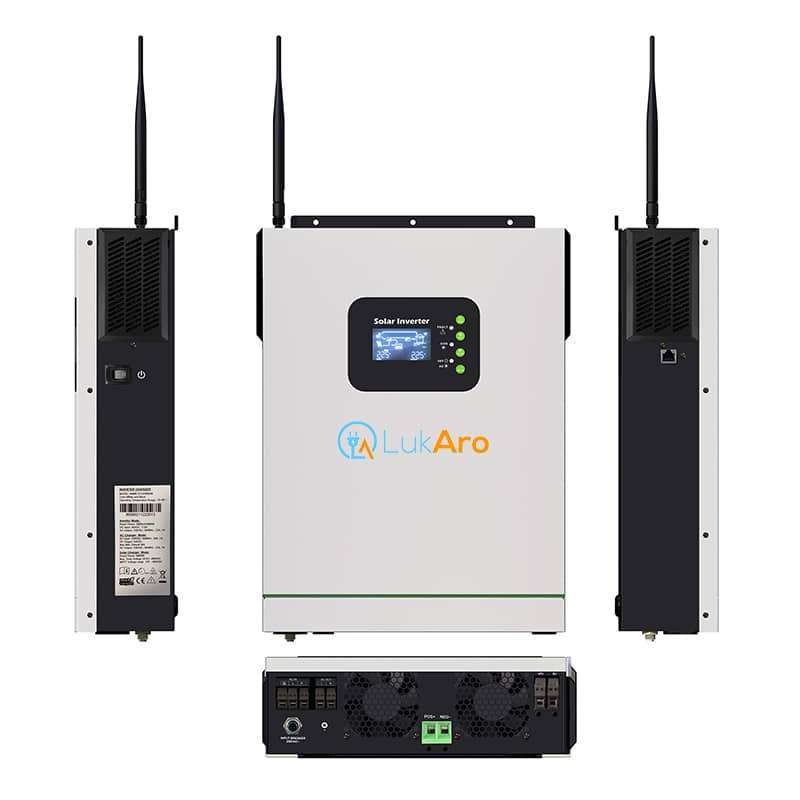

Off grid solar inverter components :

• LCD display
• Status
• Charging indicator
• Faultindicator
• Functionbuttons
• RS-232communicationport
• ACinput
• AC output
• PV input
• Battery input
• Circuitbreaker
• Power on/off switch
• Antenna

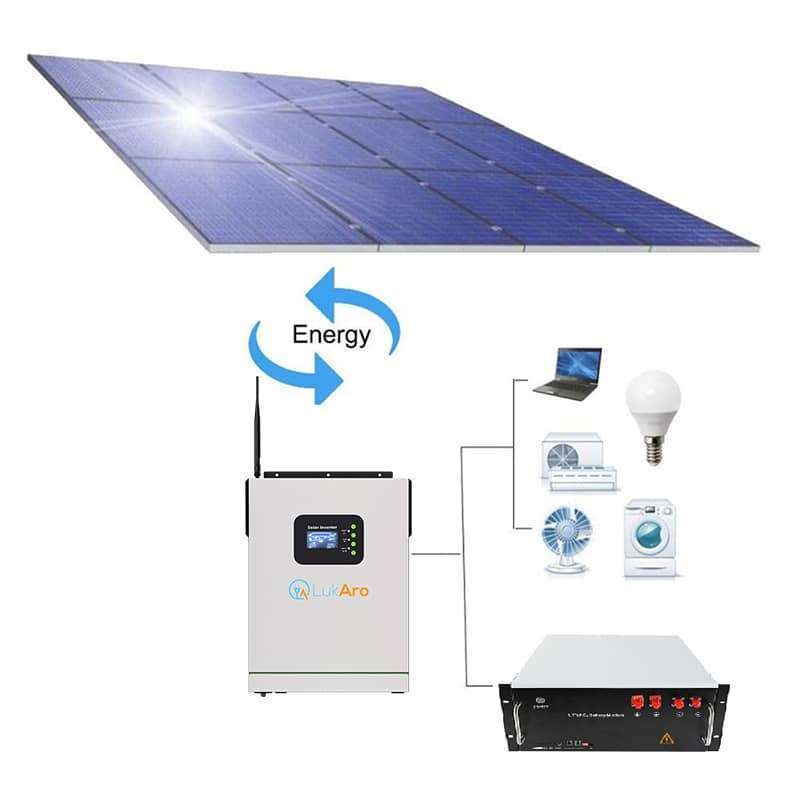

• off grid solar system
